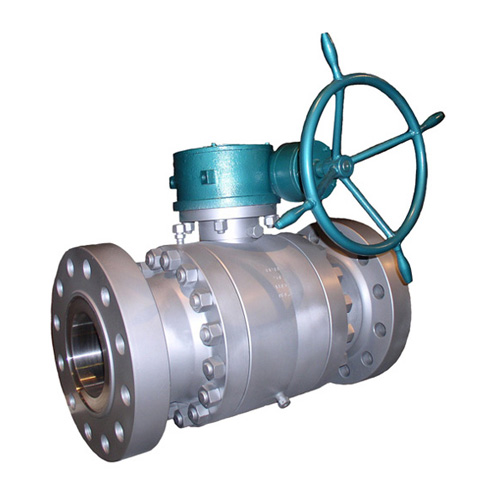

高压球阀

in

2
50

2-1/2
65

3
80

4
100

6
150

8
200

10
250

12
300

14
300

16
400

18
450

20
500

24
600

26
650

28
700

mm

L/L1
(RF/BW)

in

11.5
292

13.0
330

14.0
356

17.0
432

22.0
559

26.0
660

31.0
787

33.0
838

35.0
889

39.0
991

43.0
1092

47.0
1194

55.0
1397

57.0
1448

61.0
1549

mm

L2
(RTJ)

in

11.62
295

13.12
333

14.12
359

17.12
435

22.12
562

26.12
664

31.12
791

33.12
841

35.12
892

39.12
994

43.12
1095

47.25
1200

55.38
1407

57.5
1461

61.5
1562

mm

H

in

6.5
165

7.0
180

7.88
200

11.0
280

12.3
310

14.0
355

16.1
410

18.0
455

19.3
490

21.0
535

24.9
630

25.6
650

30.1
765

31.9
810

34.6
880

mm

WT
(Kg)

RF/RTJ

34
27

53
43

65
49

125
95

245
188

505
418

640
495

910
740

1380
1185

2250
1960

3400
3050

3850
3406

4900
4275

6700
6025

8300
7590

BW

in

2
50

2-1/2
65

3
80

4
100

6
150

8
200

10
250

12
300

14
300

16
400

18
450

20
500

24
600

mm

L/L1
(RF/BW)

in

14.5
368

16.5
419

15.0
381

18.0
457

24.0
610

29.0
737

33.0
838

38.0
965

40.5
1029

44.5
1130

48.0
1219

52.0
1321

61.0
1549

mm

L2
(RTJ)

in

14.62
371

16.62
422

15.12
384

18.12
460

24.12
613

29.12
740

33.12
841

38.12
968

40.88
1038

44.88
1140

48.5
1232

52.5
1334

61.75
1568

mm

H

in

6.9
175

7.5
190

8.3
211

11.4
290

12.6
320

15.4
390

17.0
430

18.5
470

20.9
530

24.0
610

26.0
660

27.5
700

30.8
780

mm

WT
(Kg)

RF/RTJ

43
36

63
52

70
55

130
95

365
290

650
545

935
765

1355
1150

1900
1710

3080
2735

4150
3900

4920
4400

7080
6410

in

2
50

2-1/2
65

3
80

4
100

6
150

8
200

10
250

12
300

14
300

16
400

mm

L/L1
(RF/BW)

in

14.5
368

16.5
419

18.5
470

21.5
546

27.75
705

32.75
832

39.0
991

44.5
1130

49.5
1257

54.5
1384

mm

L2
(RTJ)

in

14.62
371

16.62
422

18.62
473

21.62
549

28.0
711

33.12
841

39.38
1000

45.12
1146

50.25
1276

55.38
1407

mm

H

in

6.8
170

7.5
190

8.3
211

11.4
290

13.5
343

15.8
445

17.5

22.5
572

25.5
648

27.6
700

mm

WT
(Kg)

RF/RTJ

58
42

76
58

98
66

155
120

545
425

890
870

1365
1030

1990
1565

3110
2610

4660
3940

BW

in

2
50

2-1/2
65

3
80

4
100

6
150

8
200

10
250

12
300

mm

L/L1
(RF/BW)

in

17.75
451

20.0
508

22.75
578

26.5
673

36.0
914

40.25
1022

50.0
1270

56.0
1422

mm

L2
(RTJ)

in

17.88
454

21.25
540

23.0
584

26.88
683

36.5
927

40.88
1038

50.88
1292

56.88
1445

mm

H

in

8.0
200

9.0
230

11.0
280

14.6
365

15.8
400

19.0
475

21.0
525

27.0
675

mm

WT
(Kg)

RF/RTJ

70
55

95
75

125
92

185
125

675
560

1110
920

1650
1360

2310
3000

BW
